BI6345 Serie

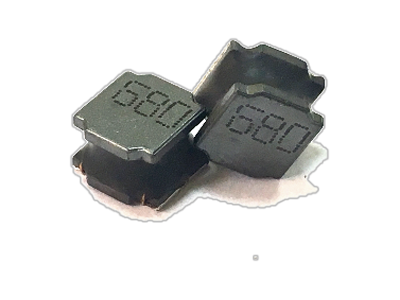

• Miniature SMD Shielded Power Inductor in a 6.3 x 6.3mm max. foot print.
• Ideal for boost and storage application on industrial equipment.
• Inductance Range of 0.68mH to 1.5mH. Custom values are welcomed.
• Tape and Real Quantity: 1000 pcs, 13'' Reel.
• Operating Temperature Range -40°C to + 125°C , RoHS and HF compliant.
• Ideal for boost and storage application on industrial equipment.
• Inductance Range of 0.68mH to 1.5mH. Custom values are welcomed.
• Tape and Real Quantity: 1000 pcs, 13'' Reel.
• Operating Temperature Range -40°C to + 125°C , RoHS and HF compliant.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 4.5 | 6.3 | 6.3 | 680uH, 20%, 3600mOhm, 0.4Amp Max. SMD Shielded Power Inductor | Data Sheet | ||
| 4.3 | 6.3 | 6.3 | 1500uH, 20%, 7800mOhm, 0.24Amp Max. SMD Shielded Power Inductor | Data Sheet | ||
| 4.5 | 6.3 | 6.3 | 1000uH, 20%, 4200mOhm, 0.23Amp Max. SMD Shielded Power Inductor | Data Sheet |
