- DIP

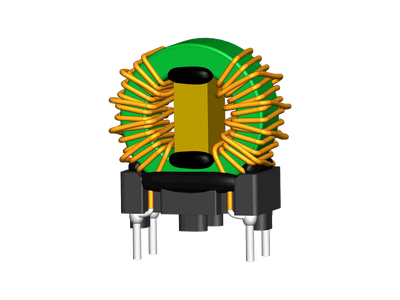

C201426A Serie
• 15.50 × 8.00mm Max.(L×W),18.00mm Max. Height
• Inductance range: 1.0mH～39.0mH,Custom values are welcomed
• AC common mode noise filter for Power Supplies and Lighting Application
• Rated Voltage: 250VAC
• Dielectric strength:1500Vrms,winding to winding
• UL 94 V-0 Material
• Operating temperature: -40 to +125℃
• RoHs & HF Compliant Components
• Inductance range: 1.0mH～39.0mH,Custom values are welcomed
• AC common mode noise filter for Power Supplies and Lighting Application
• Rated Voltage: 250VAC
• Dielectric strength:1500Vrms,winding to winding
• UL 94 V-0 Material
• Operating temperature: -40 to +125℃
• RoHs & HF Compliant Components
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 18 | 15 | 7.8 | 5.0mH, 30%, 205.0mOhm, 1.0A Max. DIP Common Mode Choke | Data Sheet | ||
| 18 | 15.5 | 8 | 4.0mH, 30%, 110.0mOhm, 1.5A Max. DIP Common Mode Choke | Data Sheet | ||
| 18 | 15 | 7.5 | 39.0mH, 30%, 2700.0mOhm, 0.3A Max. DIP Common Mode Choke | Data Sheet | ||
| 18 | 15 | 7.8 | 20.0mH, 30%, 910.0mOhm, 0.5A Max. DIP Common Mode Choke | Data Sheet | ||
| 18 | 15.5 | 8 | 10.0mH, 30%, 350.0mOhm, 0.7A Max. DIP Common Mode Choke | Data Sheet | ||
| 18 | 15 | 7.5 | 1.0mH, 30%, 45.0mOhm, 2.0A Max. DIP Common Mode Choke | Data Sheet |
