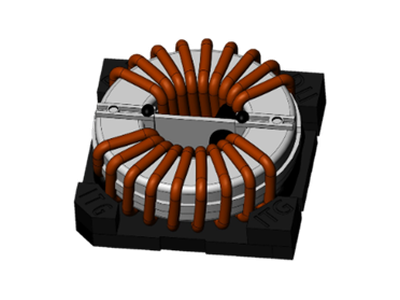

C301306H Serie

• 44.00 × 48.00mm Max.(L×W),34.00mm Max. Height.
• Inductance range: 0.52mH～1.55mH,Custom values are welcomed.
• Rugged Design Common Mode Chokes filter for industrial application.
• Rated Voltage: 600VAC
• 1000VDC.
• Dielectric strength: 2500VAC
• 3500VDC,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHS Compliant Components.

Datenblatt

Spezifikation von C301306H Serie

Speichern Muster Angebot Frage

Teilenummer	Height (mm) Max	Dimension L (mm) Max	Dimension W (mm) Max	Description	Herunterladen
C301306H-901N	34	48	44	0.90mH, 30%, 4.5mOhm, 28.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
C301306H-781N	34	48	44	0.78mH, 30%, 6.0mOhm, 23.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
C301306H-731N	34	48	44	0.73mH, 30%, 3.4mOhm, 35.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter	3D Step File
C301306H-521N	34	44	48	0.52mH, 30%, 3.4mOhm, 35.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
C301306H-152N	34	48	44	1.55mH, 30%, 6.0mOhm, 23.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
C301306H-122N	34	48	44	1.28mH, 30%, 4.5mOhm, 28.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
C301306H-112N	34	48	44	1.10mH, 30%, 6.0mOhm, 23.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
C301306H-102N	34	48	44	1.04mH, 30%, 3.4mOhm, 35.0A Max. DIP Common Mode Choke	Data Sheet	LT Spice	LT Spice	S Parameter
