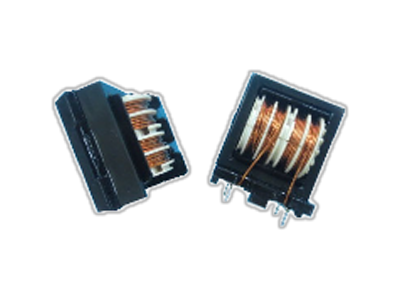

DCM372645VB Serie
• 37.0×26.0mm Max.(L×W), 45.0mm Max. Height.
• Inductance range: 3.5mH～90mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Switching Mode Power Supply, Inverter & Industrial Equipment Applications.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance Common Mode Chokes.
• Operating temperature:-55 to +130℃,RoHS & HF compliance.
• Inductance range: 3.5mH～90mH,Custom values are welcomed.
• Ideally used as AC common mode noise filter for TV, VCR, Switching Mode Power Supply, Inverter & Industrial Equipment Applications.
• Attenuation and control unit with better characteristics in low frequency band.
• Dielectric strength:1500Vrms,winding to winding.
• UL Class B Compliance Common Mode Chokes.
• Operating temperature:-55 to +130℃,RoHS & HF compliance.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 45 | 37 | 26 | 90,000uH, 1100mOhm, 1.7Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 45 | 37 | 26 | 68,000uH, 780mOhm, 2Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 45 | 37 | 26 | 47,000uH, 630mOhm, 2.2Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 45 | 37 | 26 | 3,500uH, 55mOhm, 7.5Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 45 | 37 | 26 | 22,000uH, 270mOhm, 3.35Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 45 | 37 | 26 | 10,000uH, 160mOhm, 4.4Amp Max. DIP Common Mode Chokes | Data Sheet |
