- DIP

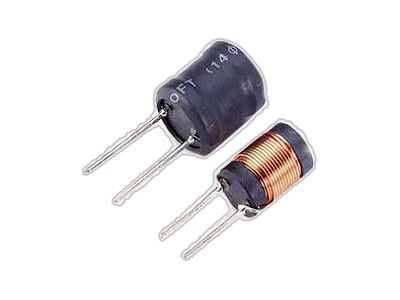

DR4044 Serie
• Low cost radial leaded inductor.
• Operating temperature range -40 ~ 85 °C.
• Custom value available upon request.
• Operating temperature range -40 ~ 85 °C.
• Custom value available upon request.
| Teilenummer | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 10.16 | 11.2 | 10.16 | 86uH, 20%, 185mOhm, 1.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 6.8uH, 20%, 195mOhm, 7Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 680uH, 20%, 1,800mOhm, 0.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 4.7uH, 20%, 15mOhm, 8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 470uH, 20%, 1,250mOhm, 0.8Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 47uH, 20%, 160mOhm, 3Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 3.3uH, 20%, 11.5mOhm, 8.9Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 330uH, 20%, 900mOhm, 1Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 33uH, 20%, 78mOhm, 3.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 2,200uH, 20%, 5,800mOhm, 0.45Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 220uH, 20%, 500mOhm, 1.2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 1uH, 20%, 5.2mOhm, 10Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 150uH, 20%, 420mOhm, 1.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 15uH, 20%, 50mOhm, 4.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 1,000uH, 20%, 3,000mOhm, 0.5Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 100uH, 20%, 240mOhm, 2Amp Max. DIP Drum Inductor | Data Sheet | ||
| 10.16 | 11.2 | 10.16 | 10uH, 20%, 35mOhm, 5Amp Max. DIP Drum Inductor | Data Sheet |
