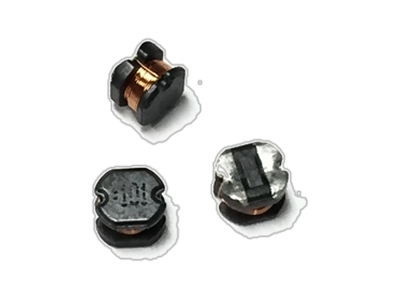

SD104 Serie
• SMD Power Inductor
• Inductance Range: 1.00uH to 560.0uH, custom values are welcomed.
• Low Profile 4.50mm max. height.
• Perfect for high density designs with limited board space.
• Operating Temperature Range of -25°C up to + 130°C.
• RoHS and HF compliant.
• Inductance Range: 1.00uH to 560.0uH, custom values are welcomed.
• Low Profile 4.50mm max. height.
• Perfect for high density designs with limited board space.
• Operating Temperature Range of -25°C up to + 130°C.
• RoHS and HF compliant.
| Teilenummer | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Herunterladen |
|---|---|---|---|---|---|
| 10.3 | 4.5 | 9.3 | 8.2uH, 20%, 0.045 Ohm DCR, 3.51A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 82uH, 10%, 0.252 Ohm DCR, 1.17A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 6.8uH, 20%, 0.034 Ohm DCR, 3.87A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 68uH, 10%, 0.223 Ohm DCR, 1.26A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 5.6uH, 20%, 0.03 Ohm DCR, 4.23A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 560uH, 10%, 1.904 Ohm DCR, 0.38A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 56uH, 10%, 0.199 Ohm DCR, 1.44A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 4.7uH, 20%, 0.025 Ohm DCR, 4.73A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 470uH, 10%, 1.526 Ohm DCR, 0.43A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 47uH, 10%, 0.17 Ohm DCR, 1.49A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 3.3uH, 20%, 0.02 Ohm DCR, 5.85A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 390uH, 10%, 1.245 Ohm DCR, 0.47A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 39uH, 10%, 0.151 Ohm DCR, 1.53A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 330uH, 10%, 1.1 Ohm DCR, 0.51A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 33uH, 10%, 0.12 Ohm DCR, 1.71A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 2.7uH, 20%, 0.018 Ohm DCR, 6.48A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 2.2uH, 20%, 0.016 Ohm DCR, 7.29A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 270uH, 10%, 0.949 Ohm DCR, 0.55A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 27uH, 15%, 0.1 Ohm DCR, 1.94A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 220uH, 10%, 0.721 Ohm DCR, 0.68A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 22uH, 15%, 0.088 Ohm DCR, 1.98A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 1.5uH, 20%, 0.011 Ohm DCR, 9.18A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 1uH, 20%, 0.007 Ohm DCR, 10A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 180uH, 10%, 0.621 Ohm DCR, 0.81A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 18uH, 15%, 0.081 Ohm DCR, 2.25A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 150uH, 10%, 0.544 Ohm DCR, 0.86A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 15uH, 15%, 0.07 Ohm DCR, 2.52A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 120uH, 10%, 0.396 Ohm DCR, 0.99A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 12uH, 20%, 0.061 Ohm DCR, 2.7A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 100uH, 10%, 0.344 Ohm DCR, 1.08A SMD Drum Inductor | Data Sheet | |
| 10.3 | 4.5 | 9.3 | 10uH, 20%, 0.053 Ohm DCR, 3.06A SMD Drum Inductor | Data Sheet |
