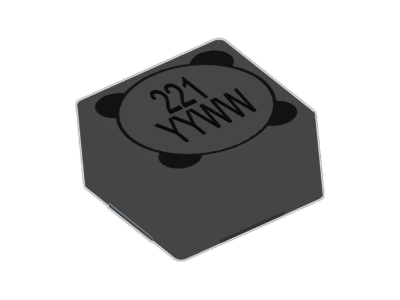

SDRH125 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 1.0uH to 1000.0uH. Custom values welcomed.
• High current output chokes, up to 9.0 Amp with 25% roll off.
• Footprint 12.5 x 12.5mm Max.
• Ideal for LCD Driver, DSC
• DVC, Notebook PC or High Density Board Design.
• Quantity Per Reel: 500 pcs per 13" Reel
• Operating Temperature Range -55°C to + 130°C
• Inductance Range: 1.0uH to 1000.0uH. Custom values welcomed.
• High current output chokes, up to 9.0 Amp with 25% roll off.
• Footprint 12.5 x 12.5mm Max.
• Ideal for LCD Driver, DSC
• DVC, Notebook PC or High Density Board Design.
• Quantity Per Reel: 500 pcs per 13" Reel
• Operating Temperature Range -55°C to + 130°C
| Teilenummer | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 12.5 | 6 | 12.5 | 820uH, 20%, 1,340mOhm, 0.43Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 82uH, 20%, 140mOhm, 1.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 680uH, 20%, 1,200mOhm, 0.48Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 68uH, 20%, 120mOhm, 1.5Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 560uH, 20%, 860mOhm, 0.54Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 56uH, 20%, 110mOhm, 1.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 470uH, 20%, 770mOhm, 0.58Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 47uH, 20%, 75mOhm, 1.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 3.3uH, 30%, 18mOhm, 7.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 3.3uH, 20%, 18mOhm, 7.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 390uH, 20%, 690mOhm, 0.65Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 39uH, 20%, 68mOhm, 2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 330uH, 20%, 510mOhm, 0.68Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 33uH, 20%, 57mOhm, 2.1Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 270uH, 20%, 460mOhm, 0.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 27uH, 20%, 51mOhm, 2.3Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 220uH, 20%, 400mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 22uH, 20%, 36mOhm, 2.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 1uH, 30%, 10mOhm, 9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 1uH, 20%, 10mOhm, 9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 180uH, 20%, 290mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 18uH, 20%, 34mOhm, 3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 150uH, 20%, 230mOhm, 1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 15uH, 20%, 30mOhm, 3.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 120uH, 20%, 170mOhm, 1.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 12uH, 20%, 27mOhm, 3.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 1,000uH, 20%, 1,530mOhm, 0.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 100uH, 20%, 160mOhm, 1.3Amp Max. SMD Drum Inductor | Data Sheet | ||
| 12.5 | 6 | 12.5 | 10uH, 20%, 25mOhm, 4Amp Max. SMD Shielded Drum Inductor | Data Sheet |
