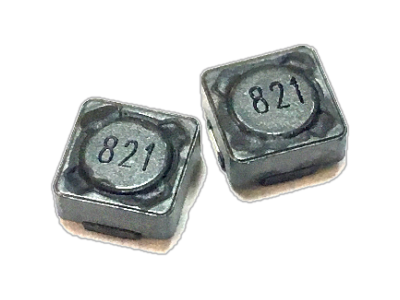

SDRH73B Serie
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 1.0 uH to 1,000.0 uH , custom values are welcomed.
• High current output chokes, up to 8.0 Amp with approx. 30% roll off.
• Low Profile 3.55mm max. height.
• Foot Print 7.6 x 7.6mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range of -55°C up to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant.
• T & R Qtys: 1,000 pcs , 13'' Reel.
• Inductance Range: 1.0 uH to 1,000.0 uH , custom values are welcomed.
• High current output chokes, up to 8.0 Amp with approx. 30% roll off.
• Low Profile 3.55mm max. height.
• Foot Print 7.6 x 7.6mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range of -55°C up to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant.
• T & R Qtys: 1,000 pcs , 13'' Reel.
| Teilenummer | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 7.6 | 3.55 | 7.6 | 8.2uH, 20%, 52.5mOhm, 2.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 820uH, 20%, 4,010mOhm, 0.3Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 82uH, 20%, 410mOhm, 0.94Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 6.8uH, 20%, 41.5mOhm, 3.12Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 680uH, 20%, 3,120mOhm, 0.34Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 68uH, 20%, 331mOhm, 1.04Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 4.7uH, 20%, 29.7mOhm, 3.78Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 470uH, 20%, 2,170mOhm, 0.41Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 47uH, 20%, 231mOhm, 1.25Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 3.3uH, 20%, 23mOhm, 4.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 330uH, 20%, 1,590mOhm, 0.48Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 33uH, 20%, 166mOhm, 1.48Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 2.2uH, 20%, 18mOhm, 5.52Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 220uH, 20%, 1,050mOhm, 0.59Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 22uH, 20%, 108mOhm, 1.83Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 1.5uH, 20%, 12.5mOhm, 6.52Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 1uH, 20%, 9.1mOhm, 8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 150uH, 20%, 751mOhm, 0.69Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 15uH, 20%, 80mOhm, 2.12Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 1000uH, 20%, 5,060mOhm, 0.27Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 100uH, 20%, 491mOhm, 0.86Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.6 | 3.55 | 7.6 | 10uH, 20%, 65.6mOhm, 2.5Amp Max. SMD Drum Inductor | Data Sheet |
