- SMD

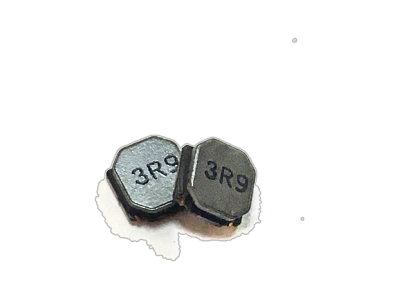

SLNR5320 Serie
• Miniature SMD shielded power inductor.
• Low profile 2.0mm max height.
• Inductance range of 0.75uH to 100.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 2,500pcs, 13” Reel.
• Low profile 2.0mm max height.
• Inductance range of 0.75uH to 100.0uH.
• Ideal for DC to DC power converter application.
• Operating temperature range of -55.0 °C ~ +130.0°C.
• RoHS and HF compliant.
• Tape and Reel quantities: 2,500pcs, 13” Reel.
| Teilenummer | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 5.3 | 2 | 5.3 | 0.75uH, 30%, 14mOhm, 6.32Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 9.1uH, 20%, 105mOhm, 1.86Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 91uH, 20%, 1000mOhm, 0.61Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 8.2uH, 20%, 93mOhm, 1.98Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 82uH, 20%, 945mOhm, 0.62Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 75uH, 20%, 890mOhm, 0.63Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 6.8uH, 20%, 87mOhm, 2.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 68uH, 20%, 885mOhm, 0.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 62uH, 20%, 625mOhm, 0.72Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 5.6uH, 20%, 66mOhm, 2.37Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 5.1uH, 20%, 66mOhm, 2.68Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 56uH, 20%, 560mOhm, 0.76Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 51uH, 20%, 545mOhm, 0.76Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 4.7uH, 30%, 59mOhm, 2.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 47uH, 20%, 525mOhm, 0.81Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 43uH, 20%, 450mOhm, 0.88Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 3.9uH, 30%, 50mOhm, 2.99Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 3.6uH, 30%, 44mOhm, 2.89Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 3.3uH, 30%, 44mOhm, 3.25Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 39uH, 20%, 415mOhm, 0.93Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 36uH, 20%, 380mOhm, 0.93Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 33uH, 20%, 370mOhm, 0.97Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 2.7uH, 30%, 38mOhm, 3.58Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 2.2uH, 30%, 27mOhm, 3.85Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 27uH, 20%, 285mOhm, 1.09Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 22uH, 20%, 235mOhm, 1.18Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 1.5uH, 30%, 23mOhm, 4.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 1.2uH, 30%, 18mOhm, 4.94Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 1uH, 30%, 18mOhm, 5.72Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 18uH, 20%, 200mOhm, 1.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 15uH, 20%, 165mOhm, 1.44Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 12uH, 20%, 145mOhm, 1.61Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 100uH, 20%, 1060mOhm, 0.57Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 5.3 | 2 | 5.3 | 10uH, 20%, 110mOhm, 1.79Amp Max. SMD Shielded Drum Inductor | Data Sheet |
