- DIP

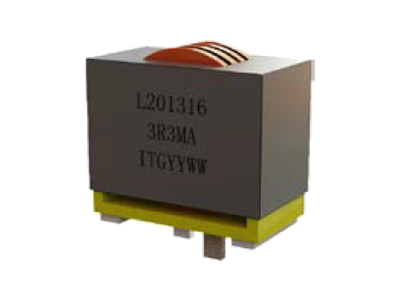

L201316 Serie
• Alloy powder based SMD Inductor with lower core loss.
• No thermal aging concerns.
• Inductance Range: 0.96uH to 11.6 uH , custom values are welcomed.
• High current output chokes, up to 100.0 Amp with approx. 30% roll off.
• For high performance switch mode power converters.
• Foot Print 33.0×15.5mm
• 17.0mm
• 19.0mm
• 32mm max. , 30.5mm max. Height.
• Operating Temperature Range: -55°C to + 150°C.
• RoHs & HF compliant.
• No thermal aging concerns.
• Inductance Range: 0.96uH to 11.6 uH , custom values are welcomed.
• High current output chokes, up to 100.0 Amp with approx. 30% roll off.
• For high performance switch mode power converters.
• Foot Print 33.0×15.5mm
• 17.0mm
• 19.0mm
• 32mm max. , 30.5mm max. Height.
• Operating Temperature Range: -55°C to + 150°C.
• RoHs & HF compliant.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | ||
|---|---|---|---|---|---|---|---|
| 30.5 | 33 | 32 | 11.6uH, 20%, 1.0mOhm, 75.0A Max. DIP Flatwire Inductor | Data Sheet | 3D Step File | ||
| 30.5 | 33 | 15.5 | 0.96uH, 20%, 0.25mOhm, 100.0A Max. DIP Flatwire Inductor | Data Sheet | |||
| 30.5 | 33 | 19 | 3.3uH, 20%, 0.46mOhm, 56.0A Max. DIP Flatwire Inductor | Data Sheet | 3D Step File | ||
| 30.5 | 32 | 17 | 2.0uH, 20%, 0.35mOhm, 75.0A Max. DIP Flatwire Inductor | Data Sheet |
