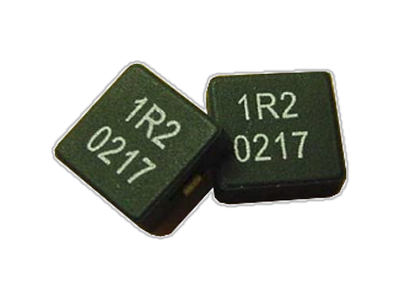

SC4015 Serie
• 0.40” Package SMD Power Inductor.
• Ideal for DC to DC converter & High density board design.
• Operating frequency of up to 3 Mhz.
• Low leakage flux.
• Low profile 3.6 – 6.35mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
• Ideal for DC to DC converter & High density board design.
• Operating frequency of up to 3 Mhz.
• Low leakage flux.
• Low profile 3.6 – 6.35mm maximum height.
• Suitable for IR reflow and wave solder process.
• Tight DCR tolerance features for current sensing application.
• RoHS and HF Compliant.
• T & R Qtys: 800pcs, 13” Reel.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 4 | 11 | 10.4 | 0.75uH, 20%, 3.25mOhm, 25Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.3 | 11 | 10.4 | 0.5uH, 20%, 1.38mOhm, 37Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.3 | 11 | 10.4 | 0.39uH, 20%, 1.32mOhm, 40Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4.3 | 11 | 10.4 | 0.15uH, 20%, 0.68mOhm, 51Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 11 | 10.4 | 4.7uH, 20%, 14mOhm, 12Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 11 | 10.4 | 3.3uH, 20%, 8mOhm, 14.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 11 | 10.4 | 2.5uH, 20%, 8mOhm, 16.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 11 | 10.4 | 1.7uH, 20%, 5.4mOhm, 22.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 11 | 10.4 | 1.2uH, 20%, 4.37mOhm, 24.5Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 4 | 11 | 10.4 | 1uH, 20%, 3.26mOhm, 26.5Amp Max. SMD Flat Wire Inductor | Data Sheet |
