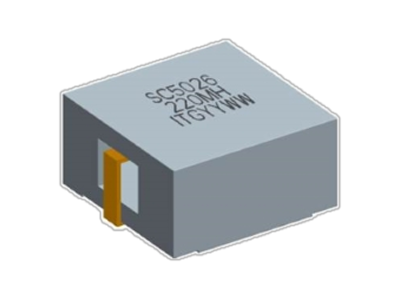

SC5026H Serie
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 10.0uH to 22.0uH, Custom values are welcomed.
• High current output chokes, up to 13.0 Amp with approx. 20% roll off.
• Low Profile 7.00 mm Max. height .
• Foot Print 13.00 x 12.80 mm .
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.
• Inductance Range: 10.0uH to 22.0uH, Custom values are welcomed.
• High current output chokes, up to 13.0 Amp with approx. 20% roll off.
• Low Profile 7.00 mm Max. height .
• Foot Print 13.00 x 12.80 mm .
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 7 | 13 | 12.8 | 22uH, 20%, 24.5 mOhm DCR, 8A SMD Power Bead | Data Sheet | ||
| 7 | 13 | 12.8 | 15uH, 20%, 11.7 mOhm DCR, 9A SMD Power Bead | Data Sheet | ||
| 7 | 13 | 12.8 | 10uH, 20%, 11.7 mOhm DCR, 13A SMD Power Bead | Data Sheet |
