- SMD

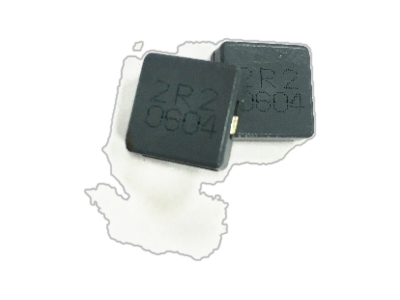

SC5113 Serie
• Low leakage flux, shielded inductor design.
• Low profile 3.5mm max height.
• Excellent DC Bias Roll off.
• Low profile 3.5mm max height.
• Excellent DC Bias Roll off.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen |
|---|---|---|---|---|---|
| 3.5 | 13.4 | 13.4 | 0.68uH, 20%, 1.78mOhm, 32Amp Max. SMD Flat Wire Inductor | Data Sheet | |
| 3.5 | 13.4 | 13.4 | 0.27uH, 20%, 0.85mOhm, 40Amp Max. SMD Flat Wire Inductor | Data Sheet | |
| 3.5 | 13.4 | 13.4 | 3.3uH, 20%, 8.6mOhm, 18Amp Max. SMD Flat Wire Inductor | Data Sheet | |
| 3.5 | 13.4 | 13.4 | 2.2uH, 20%, 6mOhm, 22Amp Max. SMD Flat Wire Inductor | Data Sheet | |
| 3.5 | 13.4 | 13.4 | 1.3uH, 20%, 3.1mOhm, 25Amp Max. SMD Flat Wire Inductor | Data Sheet |
