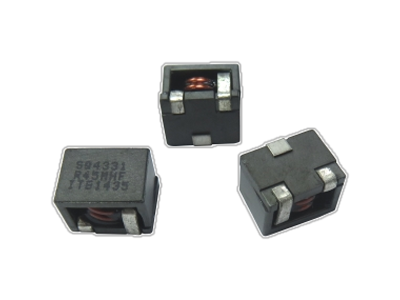

SQ4331 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, up to 43 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 10.8 x 9.2 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to +130°C, RoHs & HF compliance.
• T & R Qtys: 500 pcs,13'' Reel.
• Custom values are welcomed.
• High current output chokes, up to 43 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 10.8 x 9.2 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to +130°C, RoHs & HF compliance.
• T & R Qtys: 500 pcs,13'' Reel.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 8 | 10.8 | 9.2 | 0.6uH, 20%, 0.91mOhm, 32Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 8 | 9.2 | 10.8 | 0.55uH, 20%, 0.91mOhm, 35.0A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 8 | 10.8 | 9.2 | 0.45uH, 20%, 0.91mOhm, 41Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 8 | 10.8 | 9.2 | 0.4uH, 20%, 0.91mOhm, 43Amp Max. SMD Flat Wire Inductor | Data Sheet | ||
| 8 | 10.8 | 9.2 | 1uH, 20%, 1.76mOhm, 26Amp Max. SMD Flat Wire Inductor | Data Sheet |
