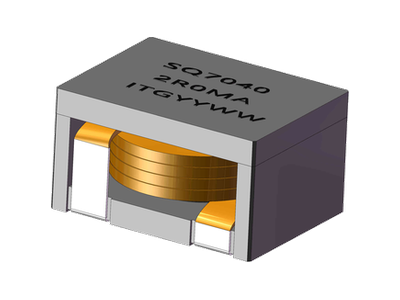

SQ7040A Serie
• Ferrite based SMD Inductor with lower core loss
• Inductance Range:2.0uH,Custom values are welcomed
• High current output chokes, upto 37.0 Amp with approx. 20% roll off
• Low Profile 10.00mm Max. height
• Foot Print 14.35 x 17.80 mm Max
• Ideal for VRM, POL, regulators,Graphics cards and battery power systems.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 125°C , RoHs & HF compliance.
• T & R Qtys: 300 pcs , 13'' Reel.
• Inductance Range:2.0uH,Custom values are welcomed
• High current output chokes, upto 37.0 Amp with approx. 20% roll off
• Low Profile 10.00mm Max. height
• Foot Print 14.35 x 17.80 mm Max
• Ideal for VRM, POL, regulators,Graphics cards and battery power systems.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 125°C , RoHs & HF compliance.
• T & R Qtys: 300 pcs , 13'' Reel.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | ||
|---|---|---|---|---|---|---|---|
| 10 | 17.8 | 14.35 | 2.0uH, 20%, 1.30mOhm, 37.0Amp Max. SMD Flat Wire Inductor | Data Sheet | 3D Step File |
