- DIP

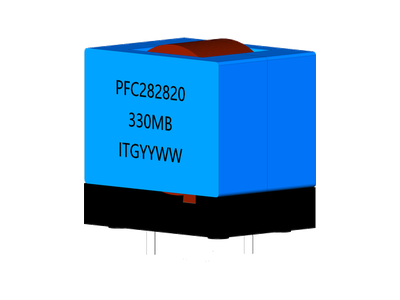

PFC282820B Serie
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 33.0 uH to 330.0 uH, custom values are welcomed
• High current output chokes, up to 46.0 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print 27.5 x 20.0mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 33.0 uH to 330.0 uH, custom values are welcomed
• High current output chokes, up to 46.0 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print 27.5 x 20.0mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|
| 28 | 330 | 51.6 | 27.5 | 20 | Power Factor Correction Chokes 330.0uH, 14.6Amp, 51.6mOhm | Data Sheet | ||
| 28 | 220 | 31 | 27.5 | 20 | Power Factor Correction Chokes 220.0uH, 17.9Amp, 31.0mOhm | Data Sheet | ||
| 28 | 165 | 22.3 | 27.5 | 20 | Power Factor Correction Chokes 165.0uH, 20.8Amp, 22.3mOhm | Data Sheet | ||
| 28 | 125 | 16.7 | 27.5 | 20 | Power Factor Correction Chokes 125.0uH, 23.8Amp, 16.7mOhm | Data Sheet | ||
| 28 | 90 | 12.5 | 27.5 | 20 | Power Factor Correction Chokes 90.0uH, 28.0Amp, 12.5mOhm | Data Sheet | ||
| 28 | 50 | 6.8 | 27.5 | 20 | Power Factor Correction Chokes 50.0uH, 37.9Amp, 6.8mOhm | Data Sheet | ||
| 28 | 33 | 4.5 | 27.5 | 20 | Power Factor Correction Chokes 33.0uH, 46.0Amp, 4.5mOhm | Data Sheet |
