- SMD

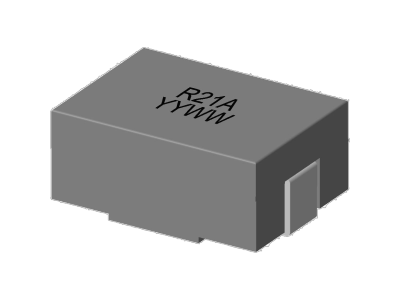

AH4320 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 150 nH to 340 nH. Custom values are welcomed.
• High current output chokes, upto 48.0 Amp with max. 20% roll off.
• Low Profile 5.0 mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C
• T & R Qty’s: 1000pcs, 13'' Reel. RoHS & HF compliant.
• Inductance Range: 150 nH to 340 nH. Custom values are welcomed.
• High current output chokes, upto 48.0 Amp with max. 20% roll off.
• Low Profile 5.0 mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C
• T & R Qty’s: 1000pcs, 13'' Reel. RoHS & HF compliant.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 0.34 | 0.35 | 31 | 15 | 13 | 11 | 8 | 0.34uH, 15%, 0.35mOhm, 15Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.28 | 0.35 | 31 | 22 | 20 | 11 | 8 | 0.28uH, 15%, 0.35mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.21 | 0.35 | 31 | 32 | 28 | 11 | 8 | 0.21uH, 10%, 0.35mOhm, 32Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.17 | 0.35 | 31 | 42 | 37 | 11 | 8 | 0.17uH, 10%, 0.35mOhm, 42Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.35 | 31 | 48 | 42 | 11 | 8 | 0.15uH, 10%, 0.35mOhm, 48Amp Max. SMD Power bead | Data Sheet |
