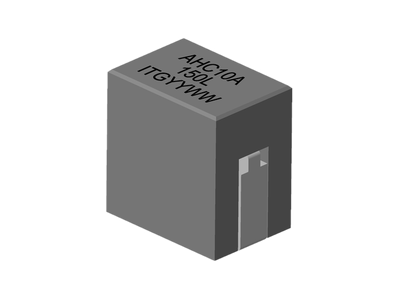

AHC10A Serie
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 100.0 nH to 330.0 nH , custom values are welcomed.
• High current output chokes, up to 105.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm height typical.
• Foot Print 10.60 x 7.30 mm max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 350 pcs , 13'' Reel. RoHS & HF compliant.
• Inductance Range: 100.0 nH to 330.0 nH , custom values are welcomed.
• High current output chokes, up to 105.0 Amp with approx. 20% roll off.
• Low Profile 10.00 mm height typical.
• Foot Print 10.60 x 7.30 mm max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 350 pcs , 13'' Reel. RoHS & HF compliant.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.15 | 0.185 | 62 | 80 | 68 | 10.6 | 7.3 | 0.15uH, 10%, 0.185mOhm, 80Amp Max. SMD Power bead | Data Sheet | 3D Step File |
