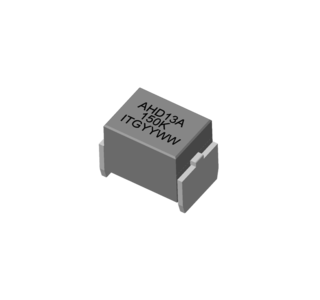

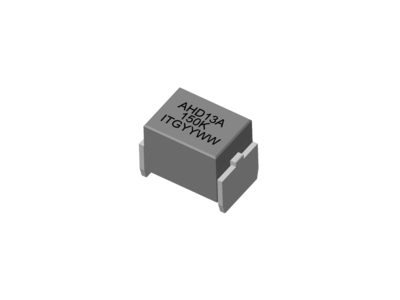

AHD13A Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 120.0 nH to 330.0 nH. Custom values are welcomed.
• High current output chokes, up to 103.0 Amps with approx. 20% roll off.
• Low Profile 9.80 mm max. height.
• 12.30 x 8.10 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 400 pcs, 13'' Reel. RoHs & HF compliant.
• Inductance Range: 120.0 nH to 330.0 nH. Custom values are welcomed.
• High current output chokes, up to 103.0 Amps with approx. 20% roll off.
• Low Profile 9.80 mm max. height.
• 12.30 x 8.10 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 400 pcs, 13'' Reel. RoHs & HF compliant.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.8 | 0.33 | 0.22 | 65 | 31 | 26 | 12.3 | 8.1 | 0.33uH, 10%, 0.22mOhm, 31Amp Max. SMD Power bead | Data Sheet | ||
| 9.8 | 0.27 | 0.22 | 65 | 41 | 36 | 12.3 | 8.1 | 0.27uH, 10%, 0.22mOhm, 41Amp Max. SMD Power bead | Data Sheet | ||
| 9.8 | 0.21 | 0.22 | 65 | 56 | 51 | 12.3 | 8.1 | 0.21uH, 10%, 0.22mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 9.8 | 0.17 | 0.22 | 65 | 76 | 70 | 12.3 | 8.1 | 0.17uH, 10%, 0.22mOhm, 76Amp Max. SMD Power bead | Data Sheet | ||
| 9.8 | 0.15 | 0.22 | 65 | 86 | 80 | 12.3 | 8.1 | 0.15uH, 10%, 0.22mOhm, 86Amp Max. SMD Power bead | Data Sheet | ||
| 9.8 | 0.12 | 0.22 | 65 | 103 | 94 | 12.3 | 8.1 | 0.12uH, 10%, 0.22mOhm, 103Amp Max. SMD Power bead | Data Sheet |
