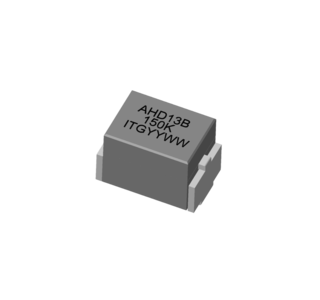

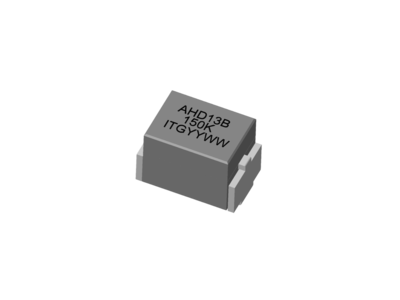

AHD13B Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 105.0 nH to 330.0 nH. Custom values are welcomed.
• High current output chokes, up to 120.0 Amps with approx. 20% roll off.
• Low Profile 10.00 mm max. height.
• 12.80 x 8.30 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 400 pcs, 13'' Reel. RoHs & HF compliant.
• Inductance Range: 105.0 nH to 330.0 nH. Custom values are welcomed.
• High current output chokes, up to 120.0 Amps with approx. 20% roll off.
• Low Profile 10.00 mm max. height.
• 12.80 x 8.30 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 400 pcs, 13'' Reel. RoHs & HF compliant.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.33 | 0.22 | 63 | 32 | 27 | 12.8 | 8.3 | 0.33uH, 10%, 0.215mOhm, 32Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.27 | 0.22 | 63 | 42 | 36 | 12.8 | 8.3 | 0.27uH, 10%, 0.215mOhm, 42Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.21 | 0.22 | 63 | 57 | 52 | 12.8 | 8.3 | 0.21uH, 10%, 0.215mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.18 | 0.22 | 63 | 69 | 63 | 12.8 | 8.3 | 0.18uH, 10%, 0.215mOhm, 69Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.17 | 0.22 | 63 | 76 | 70 | 12.8 | 8.3 | 0.17uH, 10%, 0.215mOhm, 76Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.15 | 0.22 | 63 | 86 | 80 | 12.8 | 8.3 | 0.15uH, 10%, 0.215mOhm, 86Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.12 | 0.22 | 63 | 105 | 96 | 12.8 | 8.3 | 0.12uH, 10%, 0.215mOhm, 105Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.105 | 0.22 | 63 | 120 | 109 | 12.8 | 8.3 | 0.105uH, 10%, 0.215mOhm, 120Amp Max. SMD Power bead | Data Sheet |
