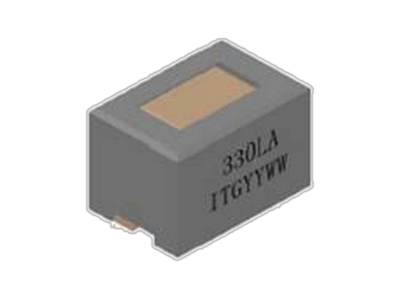

L101166 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, up to 33.00 Amp with approx. 20% roll off.
• Low Profile 6.50 mm Max.height.
• 10.00 x 8.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 550 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, up to 33.00 Amp with approx. 20% roll off.
• Low Profile 6.50 mm Max.height.
• 10.00 x 8.00 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 550 pcs , 13'' Reel.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.5 | 0.82 | 0.35 | 40 | 12 | 10 | 10 | 8 | 0.82uH, 15%, 0.35mOhm, 12Amp Max. SMD Power bead | Data Sheet | ||
| 6.5 | 0.68 | 0.35 | 40 | 15 | 12 | 10 | 8 | 0.68uH, 15%, 0.35mOhm, 15Amp Max. SMD Power bead | Data Sheet | ||
| 6.5 | 0.47 | 0.35 | 40 | 22 | 17 | 10 | 8 | 0.47uH, 15%, 0.35mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 6.5 | 0.33 | 0.35 | 40 | 33 | 26 | 10 | 8 | 0.33uH, 15%, 0.35mOhm, 33Amp Max. SMD Power bead | Data Sheet |
