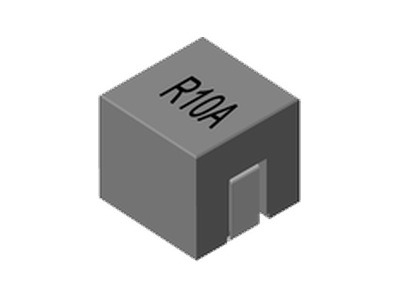

SL1616 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:50nH to 100nH. Custom values are welcomed.
• High current output chokes, up to 29 Amp with approx. 20% roll off.
• Low Profile 4.00mm Max. height.
• Foot Print 4.00 x 4.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 2000 pcs , 13'' Reel.
• Inductance Range:50nH to 100nH. Custom values are welcomed.
• High current output chokes, up to 29 Amp with approx. 20% roll off.
• Low Profile 4.00mm Max. height.
• Foot Print 4.00 x 4.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 2000 pcs , 13'' Reel.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.1 | 1 | 11 | 17 | 13 | 4 | 4 | 0.1uH, 20%, 1mOhm, 17Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.1 | 0.32 | 19 | 17 | 13 | 4 | 4 | 0.1uH, 20%, 0.32mOhm, 17Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.08 | 1 | 11 | 22 | 17 | 4 | 4 | 0.08uH, 20%, 1mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.08 | 0.32 | 19 | 22 | 17 | 4 | 4 | 0.08uH, 20%, 0.32mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.065 | 1 | 11 | 26 | 22 | 4 | 4 | 0.065uH, 15%, 1mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.065 | 0.32 | 19 | 26 | 22 | 4 | 4 | 0.065uH, 15%, 0.32mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.05 | 1 | 11 | 29 | 26 | 4 | 4 | 0.05uH, 15%, 1mOhm, 29Amp Max. SMD Power bead | Data Sheet | ||
| 4 | 0.05 | 0.32 | 19 | 29 | 26 | 4 | 4 | 0.05uH, 15%, 0.32mOhm, 29Amp Max. SMD Power bead | Data Sheet |
