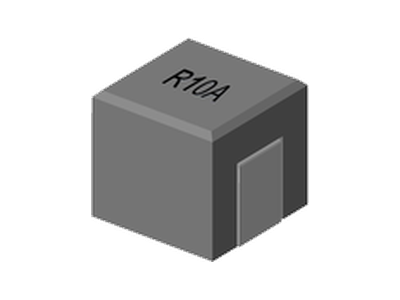

SL18185 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 22.0 Amp with approx. 20% roll off.
• Low Profile 4.50mm Max. height.
• Foot Print 4.50 x 4.50 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1700 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, upto 22.0 Amp with approx. 20% roll off.
• Low Profile 4.50mm Max. height.
• Foot Print 4.50 x 4.50 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1700 pcs , 13'' Reel.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.5 | 0.1 | 0.3 | 40 | 22 | 19 | 4.5 | 4.5 | 0.1uH, 20%, 0.3mOhm, 22Amp Max. SMD Power bead | Data Sheet |
