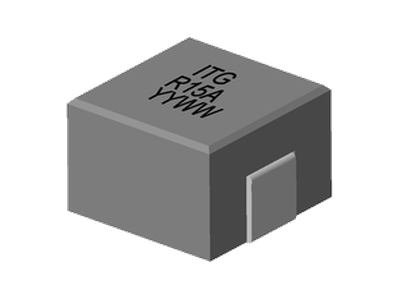

SL2820 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:50nH to 250nH. Custom values are welcomed.
• High current output chokes, upto 90Amp with about 20% roll off.
• Low Profile 4.95 mm Max. height.
• Foot Print 7.0 x 7.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• T & R Qtys: 1000 pcs , 13'' Reel.
• Inductance Range:50nH to 250nH. Custom values are welcomed.
• High current output chokes, upto 90Amp with about 20% roll off.
• Low Profile 4.95 mm Max. height.
• Foot Print 7.0 x 7.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 5 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• T & R Qtys: 1000 pcs , 13'' Reel.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.95 | 0.25 | 0.25 | 43 | 19 | 16 | 7 | 7 | 0.25uH, 20%, 0.25mOhm, 19Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.18 | 0.32 | 38 | 27 | 22 | 7 | 7 | 0.18uH, 20%, 0.32mOhm, 27Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.18 | 0.3 | 39 | 27 | 22 | 7 | 7 | 0.18uH, 20%, 0.3mOhm, 27Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.18 | 0.25 | 43 | 27 | 22 | 7 | 7 | 0.18uH, 20%, 0.25mOhm, 27Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.15 | 0.32 | 38 | 37 | 29 | 7 | 7 | 0.15uH, 20%, 0.32mOhm, 37Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.15 | 0.3 | 39 | 37 | 29 | 7 | 7 | 0.15uH, 20%, 0.3mOhm, 37Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.15 | 0.25 | 43 | 37 | 29 | 7 | 7 | 0.15uH, 20%, 0.25mOhm, 37Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.12 | 0.32 | 38 | 43 | 36 | 7 | 7 | 0.12uH, 15%, 0.32mOhm, 43Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.12 | 0.3 | 39 | 43 | 36 | 7 | 7 | 0.12uH, 15%, 0.3mOhm, 43Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.12 | 0.25 | 43 | 43 | 36 | 7 | 7 | 0.12uH, 15%, 0.25mOhm, 43Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.105 | 0.32 | 38 | 44 | 37 | 7 | 7 | 0.105uH, 15%, 0.32mOhm, 44Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.105 | 0.3 | 39 | 44 | 37 | 7 | 7 | 0.105uH, 15%, 0.3mOhm, 44Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.105 | 0.25 | 43 | 44 | 37 | 7 | 7 | 0.105uH, 15%, 0.25mOhm, 44Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.07 | 0.32 | 38 | 66 | 55 | 7 | 7 | 0.07uH, 15%, 0.32mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.07 | 0.3 | 39 | 66 | 55 | 7 | 7 | 0.07uH, 15%, 0.3mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.07 | 0.25 | 43 | 66 | 55 | 7 | 7 | 0.07uH, 15%, 0.25mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.05 | 0.32 | 38 | 90 | 75 | 7 | 7 | 0.05uH, 15%, 0.32mOhm, 90Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.05 | 0.3 | 39 | 90 | 75 | 7 | 7 | 0.05uH, 15%, 0.30mOhm, 90Amp Max. SMD Power bead | Data Sheet | ||
| 4.95 | 0.05 | 0.25 | 43 | 90 | 75 | 7 | 7 | 0.05uH, 15%, 0.25mOhm, 90Amp Max. SMD Power bead | Data Sheet |
