- SMD

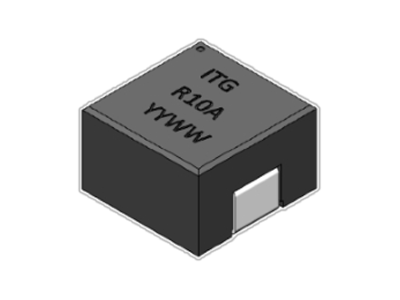

SL3020A Serie
• T & R Qtys: 1000 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 1.0 MHz.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.96 | 0.1 | 0.17 | 39 | 43 | 36 | 7.62 | 7.49 | 0.1uH, 10%, 0.17mOhm, 43Amp Max. SMD Power bead | Data Sheet |
