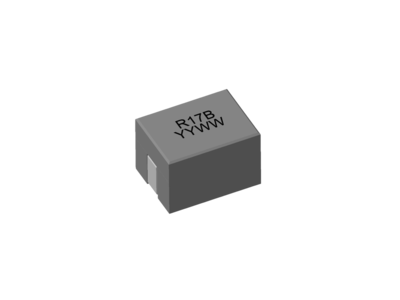

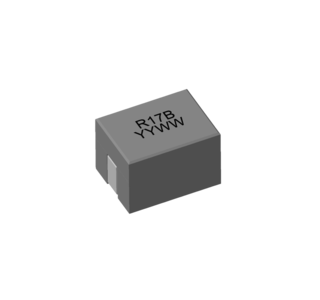

SL43308 Serie
• Ferrite based SMD Inductor with lower core loss at high frequency application.
• Inductance Range:150nH to 390nH. Custom values are welcomed.
• High current output chokes, upto 72+ Amp with max. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs compliance.
• Inductance Range:150nH to 390nH. Custom values are welcomed.
• High current output chokes, upto 72+ Amp with max. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs compliance.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.39 | 0.48 | 37 | 30 | 24 | 11 | 8 | 0.39uH, 15%, 0.48mOhm, 30Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.39 | 0.4 | 41 | 30 | 24 | 11 | 8 | 0.39uH, 15%, 0.4mOhm, 30Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.39 | 0.29 | 48 | 30 | 24 | 11 | 8 | 0.39uH, 15%, 0.29mOhm, 30Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.3 | 0.48 | 37 | 38 | 30 | 11 | 8 | 0.3uH, 15%, 0.48mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.3 | 0.4 | 41 | 38 | 30 | 11 | 8 | 0.3uH, 15%, 0.4mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.3 | 0.29 | 48 | 38 | 30 | 11 | 8 | 0.3uH, 15%, 0.29mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.23 | 0.48 | 37 | 57 | 47 | 11 | 8 | 0.23uH, 10%, 0.48mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.23 | 0.4 | 41 | 57 | 47 | 11 | 8 | 0.23uH, 10%, 0.4mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.23 | 0.29 | 48 | 57 | 47 | 11 | 8 | 0.23uH, 10%, 0.29mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.17 | 0.48 | 37 | 72 | 65 | 11 | 8 | 0.17uH, 10%, 0.48mOhm, 73Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.17 | 0.4 | 41 | 72 | 65 | 11 | 8 | 0.17uH, 10%, 0.4mOhm, 73Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.17 | 0.29 | 48 | 72 | 65 | 11 | 8 | 0.17uH, 10%, 0.29mOhm, 73Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.15 | 0.48 | 37 | 72 | 71 | 11 | 8 | 0.15uH, 10%, 0.48mOhm, 74Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.15 | 0.4 | 41 | 72 | 71 | 11 | 8 | 0.15uH, 10%, 0.4mOhm, 74Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.15 | 0.29 | 48 | 72 | 71 | 11 | 8 | 0.15uH, 10%, 0.29mOhm, 74Amp Max. SMD Power bead | Data Sheet |
