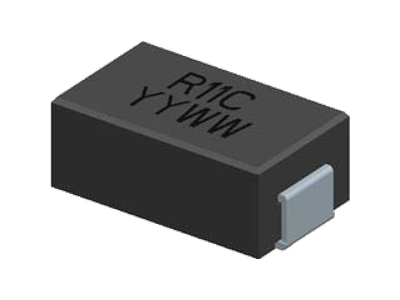

SL5415 Serie
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:110nH to 300nH. Custom values are welcomed.
• High current output chokes, upto 68.0 Amp with approx. 20% roll off.
• Low Profile 4.0mm Max. height.
• Foot Print 13.8 x 7.8 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1200 pcs , 13'' Reel.
• Inductance Range:110nH to 300nH. Custom values are welcomed.
• High current output chokes, upto 68.0 Amp with approx. 20% roll off.
• Low Profile 4.0mm Max. height.
• Foot Print 13.8 x 7.8 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1200 pcs , 13'' Reel.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 20℃ | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.3 | 0.23 | 50 | 21 | 19 | 13.8 | 7.8 | 0.3uH, 20%, 0.23mOhm, 21Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.3 | 0.23 | 50.5 | 21 | 19 | 13.8 | 7.8 | 0.3uH, 20%, 0.225mOhm, 21Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.3 | 0.2 | 53 | 21 | 19 | 13.8 | 7.8 | 0.3uH, 20%, 0.2mOhm, 21Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.24 | 0.23 | 50 | 30 | 26 | 13.8 | 7.8 | 0.24uH, 20%, 0.23mOhm, 30Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.24 | 0.23 | 50.5 | 30 | 26 | 13.8 | 7.8 | 0.24uH, 20%, 0.225mOhm, 30Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.24 | 0.2 | 53 | 30 | 26 | 13.8 | 7.8 | 0.24uH, 20%, 0.2mOhm, 30Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.18 | 0.23 | 50 | 42 | 37 | 13.8 | 7.8 | 0.18uH, 15%, 0.23mOhm, 42Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.18 | 0.23 | 50.5 | 42 | 37 | 13.8 | 7.8 | 0.18uH, 15%, 0.225mOhm, 42Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.18 | 0.2 | 53 | 42 | 37 | 13.8 | 7.8 | 0.18uH, 15%, 0.2mOhm, 42Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.14 | 0.23 | 50 | 53 | 45 | 13.8 | 7.8 | 0.14uH, 15%, 0.23mOhm, 53Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.14 | 0.23 | 50.5 | 53 | 45 | 13.8 | 7.8 | 0.14uH, 15%, 0.225mOhm, 53Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.14 | 0.2 | 53 | 53 | 45 | 13.8 | 7.8 | 0.14uH, 15%, 0.2mOhm, 53Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.125 | 0.23 | 50 | 61 | 53 | 13.8 | 7.8 | 0.125uH, 15%, 0.23mOhm, 61Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.125 | 0.23 | 50.5 | 61 | 53 | 13.8 | 7.8 | 0.125uH, 15%, 0.225mOhm, 61Amp Max. SMD Power bead | Data Sheet | |||
| 4 | 0.125 | 0.2 | 53 | 61 | 53 | 13.8 | 7.8 | 0.125uH, 15%, 0.2mOhm, 61Amp Max. SMD Power bead | Data Sheet | |||
| 4.1 | 0.11 | 0.23 | 50 | 68 | 55 | 13.8 | 7.8 | 0.11uH, 10%, 0.23mOhm, 68Amp Max. SMD Power bead | Data Sheet | |||
| 4.1 | 0.11 | 0.23 | 50.5 | 68 | 55 | 13.8 | 7.8 | 0.11uH, 10%, 0.225mOhm, 68Amp Max. SMD Power bead | Data Sheet | |||
| 4.1 | 0.11 | 0.2 | 53 | 68 | 55 | 13.8 | 7.8 | 0.11uH, 10%, 0.2mOhm, 68Amp Max. SMD Power bead | Data Sheet | |||
| 4.2 | 0.1 | 0.23 | 50 | 73 | 62 | 12.7 | 7.8 | 100nH, 10%, 0.23mOhm, 73A Max. SMD Power Bead | Data Sheet | |||
| 4.2 | 0.08 | 0.23 | 50 | 91 | 79 | 12.7 | 7.8 | 80nH, 10%, 0.23mOhm, 91A Max. SMD Power Bead | Data Sheet | |||
| 4.2 | 0.07 | 0.23 | 50 | 105 | 88 | 12.7 | 7.8 | 70nH, 10%, .23mOhm, 105A Max. SMD Power Bead | Data Sheet |
