- SMD

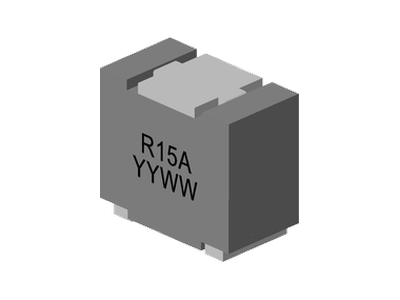

SLA40356 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 66.0 Amp with approx. 20% roll off.
• Low Profile 9.0mm Max. height.
• Foot Print 10.2 x 5.75 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 66.0 Amp with approx. 20% roll off.
• Low Profile 9.0mm Max. height.
• Foot Print 10.2 x 5.75 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 0.18 | 0.32 | 50 | 60 | 52 | 10.2 | 5.75 | 0.18uH, 10%, 0.32mOhm, 60Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.18 | 0.32 | 50 | 60 | 52 | 10.2 | 5.75 | 0.18uH, 10%, 0.32mOhm, 60Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.18 | 0.29 | 53 | 60 | 52 | 10.2 | 5.75 | 0.18uH, 10%, 0.29mOhm, 60Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.18 | 0.29 | 53 | 60 | 52 | 10.2 | 5.75 | 0.18uH, 10%, 0.29mOhm, 60Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.15 | 0.32 | 50 | 66 | 61 | 10.2 | 5.75 | 0.15uH, 10%, 0.32mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.15 | 0.32 | 50 | 66 | 61 | 10.2 | 5.75 | 0.15uH, 10%, 0.32mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.15 | 0.29 | 53 | 66 | 61 | 10.2 | 5.75 | 0.15uH, 10%, 0.29mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.15 | 0.29 | 53 | 66 | 61 | 10.2 | 5.75 | 0.15uH, 10%, 0.29mOhm, 66Amp Max. SMD Power bead | Data Sheet |
