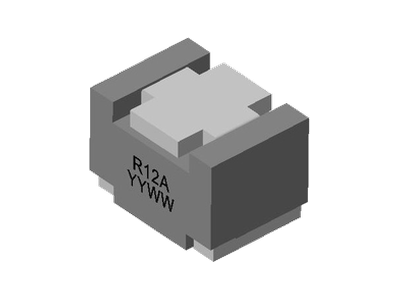

SLA43308 Serie
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 66 Amp with approx. 20% roll off.
• Low Profile 7.6mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 66 Amp with approx. 20% roll off.
• Low Profile 7.6mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
| Teilenummer | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.6 | 0.12 | 0.05 | 88 | 66 | 54 | 11 | 8 | 0.12uH, 10%, 0.05mOhm, 88Amp Max. SMD Power bead | Data Sheet |
