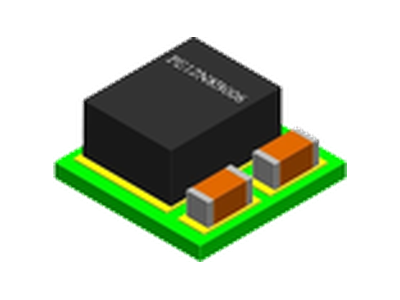

PE12N8B006 Serie
• • Buck converter with Output Inductor Integrated • 3.3 x 3.3 x 1.45mm compact footprint. • Input Voltage Range: 5V to 16V (down to 4.5V with ext. VCC) • Output Voltage Range: 0.575V to 2.5V • 6A Continuous Output Current. • No external component is required • I2C Programmable (PVIN, VOUT, Temp) • Excellent Load and Line Regulations with 1% Voltage Accuracy • Operating Temperature Range: -40°C to 125°C • Protections (OCP, NOCP, OVP, UVLO, OTP). • Lead-free, halogen-free, and REACH
• RoHS compliant • Moisture Sensitivity Level 3
• RoHS compliant • Moisture Sensitivity Level 3
| Teilenummer | Description | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Vin | Vout | Iout | Application | Construction |
|---|---|---|---|---|---|---|---|---|---|
| I2C Programmable, Input 12v, Output 2.50V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 2.5 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 1.80V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 1.8 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 1.20V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 1.2 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 1.10V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 1.1 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 1.05V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 1.8 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 1.00V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 1 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.90V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.9 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.80V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.8 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.75V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.75 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.70V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.7 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.60V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.6 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.59V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.59 | 6 | Server & Storage,DC/DC Converter | SMD | |
| I2C Programmable, Input 12v, Output 0.575V, 6Amp, SMD Power Module | 1.45 | 3.3 | 3.3 | 12 | 0.575 | 6 | Server & Storage,DC/DC Converter | SMD |
