- DIP

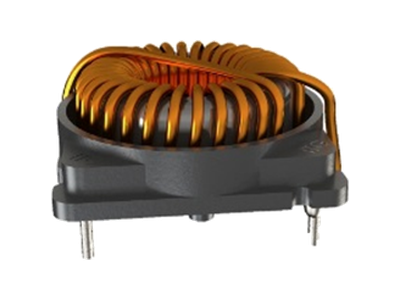

L301314A Serie
• Alloy powder core is used to realize lower core loss.
• No thermal aging concerns.
• Low leakage magnetic flux.
• Elimination for impulse (EMI) noise.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• Inductance Range: 69.63uH to 300 uH , custom values are welcomed.
• Foot Print 29.0×26.0mm max. , 16.5mm max. Height.
• Operating Temperature Range: -55°C to + 130°C; RoHs & HF compliance.
• No thermal aging concerns.
• Low leakage magnetic flux.
• Elimination for impulse (EMI) noise.
• Ideally used as Power Factor Correction choke.
• Also can be used as boost inductor in power supplies.
• Inductance Range: 69.63uH to 300 uH , custom values are welcomed.
• Foot Print 29.0×26.0mm max. , 16.5mm max. Height.
• Operating Temperature Range: -55°C to + 130°C; RoHs & HF compliance.
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | |
|---|---|---|---|---|---|---|
| 16.5 | 29 | 26 | 69.63uH, 18.5mOhm, 3.8A Max. DIP Toroidal Inductor | Data Sheet | ||
| 14.5 | 27 | 26 | 300uH, 170mOhm, 1.8A Max. Toroidal Inductor | Data Sheet | ||
| 14.5 | 27 | 26 | 250uH, 112mOhm, 2A Max. Toroidal Inductor | Data Sheet | ||
| 15.5 | 28 | 26 | 200uH, 75mOhm, 2.2A Max. Toroidal Inductor | Data Sheet | ||
| 16 | 28 | 26 | 150uH, 43mOhm, 2.6A Max. Toroidal Inductor | Data Sheet | ||
| 16.5 | 29 | 26 | 100uH, 26mOhm, 3.2A Max. DIP Totroidal Inductor | Data Sheet |
