- DIP

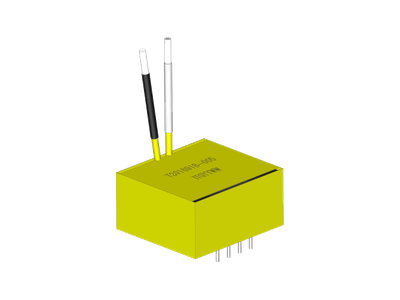

T201691B Serie
• 65W USB PD3.1 Application
• 26.00 x 22.00 mm max Footprint, lower profile 13.00 mm max Height
• Lm: 118.00μH±10%, Lk: 6.00uH Max
• Hi-Pot (Pri to Sec): AC3.75KV
• 1mA
• 2S
• 50
• 60Hz
• Operating Temperature Range -40°C to +125°C
• RoHS & HF Compliant
• 26.00 x 22.00 mm max Footprint, lower profile 13.00 mm max Height
• Lm: 118.00μH±10%, Lk: 6.00uH Max
• Hi-Pot (Pri to Sec): AC3.75KV
• 1mA
• 2S
• 50
• 60Hz
• Operating Temperature Range -40°C to +125°C
• RoHS & HF Compliant
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen |
|---|---|---|---|---|---|
| 13 | 26 | 22 | 118.00uH, 10%, 8.00mOhm to 140.0mOhm DCR, 65W PD3.1, DIP Transformer | Data Sheet |
