- DIP

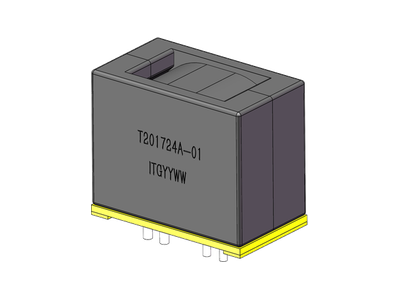

T201724A Serie
• 140W USB PD3.1 Application
• 27.500 x 16.00 mm max Footprint, 23.00 mm max Height
• Lm: 400.00μH±10%
• Hi-Pot (Pri to Sec): AC3.0KV
• 3mA
• 2S
• 50
• 60Hz
• Operating Temperature Range -55°C to +130°C
• RoHS & HF Compliant
• 27.500 x 16.00 mm max Footprint, 23.00 mm max Height
• Lm: 400.00μH±10%
• Hi-Pot (Pri to Sec): AC3.0KV
• 3mA
• 2S
• 50
• 60Hz
• Operating Temperature Range -55°C to +130°C
• RoHS & HF Compliant
| Teilenummer | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Herunterladen | ||
|---|---|---|---|---|---|---|---|
| 23 | 27.5 | 16 | 400.00uH, 10%, 3.40mOhm to 138.2mOhm DCR, 140W PD3.1, DIP Transformer | Data Sheet | 3D Step File | Data Sheet |
