- DIP

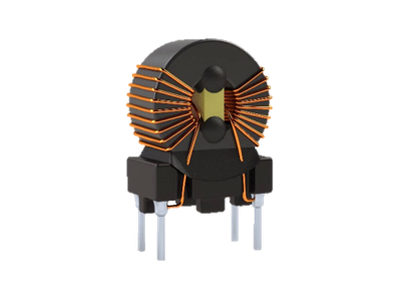

C201388A 系列
• 17.50 × 10.00mm Max.(L×W),20.00mm Max. Height.
• Inductance range: 0.35mH～11.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHS Compliant Components.
• Inductance range: 0.35mH～11.0mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material.
• Operating temperature: -40 to +125℃.
• RoHS Compliant Components.
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 16.5 | 10 | 8.0mH, +50% / -30%, 110.0mOhm, 1.8A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 20 | 16.5 | 10 | 5.0mH, +50% / -30%, 66.0mOhm, 2.4A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 20 | 17.5 | 10 | 0.50mH, +50% / -30%, 11.0mOhm, 5.8A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 20 | 17.5 | 10 | 0.35mH, +50% / -30%, 9.0mOhm, 6.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | 3D Step File | ||
| 20 | 16.5 | 10 | 1.6mH, +50% / -30%, 30.0mOhm, 3.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | 3D Step File | ||
| 20 | 16.5 | 10 | 11.0mH, +50% / -30%, 170.0mOhm, 1.5A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | |||
| 20 | 16.5 | 10 | 1.0mH, +50% / -30%, 19.5mOhm, 4.4A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter |
