- DIP

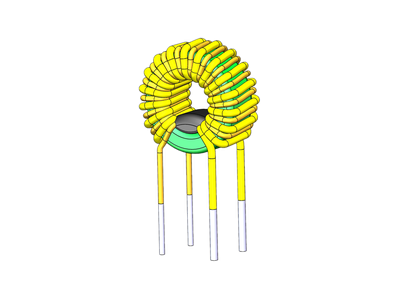

C201699A 系列
• 13.50 × 7.50mm Max.(L×W), 13.00mm Max. Height
• Inductance range: 1.0mH, Custom values are welcomed
• AC common mode noise filter for Power Supplies and Lighting Application
• Rated Voltage: 250VAC
• Dielectric strength: 1500Vrms, winding to winding
• Operating temperature: -40 to +125℃
• RoHs & HF Compliant Components
• Inductance range: 1.0mH, Custom values are welcomed
• AC common mode noise filter for Power Supplies and Lighting Application
• Rated Voltage: 250VAC
• Dielectric strength: 1500Vrms, winding to winding
• Operating temperature: -40 to +125℃
• RoHs & HF Compliant Components
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 13 | 13.5 | 7.5 | 1.0mH, 30%, 32.0mOhm, 2.7A Max. DIP Common Mode Choke | Data Sheet | LT Spice | LT Spice | S Parameter | 3D Step File | Data Sheet |
