- DIP

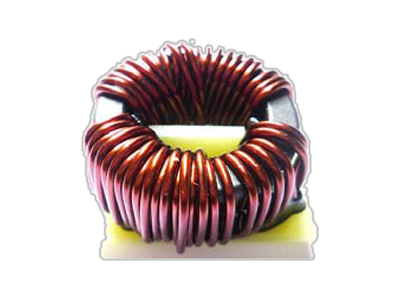

C30540 系列
• Single wire wound and very compact design.
• Inductance Range:3.0mH to 4.5mH. Custom values are welcomed.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current rating up to 45 Amp.
• Lower core loss, lower distributed capacitance.
• Dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic head.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 130℃ , RoHS & HF compliance.
• Inductance Range:3.0mH to 4.5mH. Custom values are welcomed.
• Excellent EMI suppression capability over wide frequency spectrum.
• High current rating up to 45 Amp.
• Lower core loss, lower distributed capacitance.
• Dielectric strength:1500Vrms.
• Coil mount on UL94-V0 rated plastic head.
• Fixed pin spacing allow easy PCB insertion.
• Operating temperature:-55 to + 130℃ , RoHS & HF compliance.
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 31 | 54 | 53.5 | 4,500uH, 3.5mOhm, 40Amp Max. DIP Common Mode Chokes | Data Sheet | ||
| 31 | 54 | 53.5 | 3,000uH, 2.6mOhm, 45Amp Max. DIP Common Mode Chokes | Data Sheet |
