- SMD

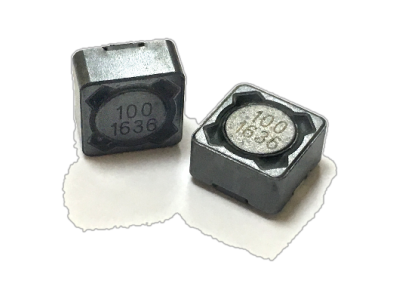

SDRH74B 系列
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 1.0 uH to 1,000.0 uH , custom values are welcomed.
• High current output chokes, up to 10.2 Amp with approx. 30% roll off.
• Low Profile 4.5 mm max. height.
• Foot Print 7.6 x 7.6mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range of -55°C up to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant.
• T & R Qtys: 1,000 pcs , 13'' Reel.
• Inductance Range: 1.0 uH to 1,000.0 uH , custom values are welcomed.
• High current output chokes, up to 10.2 Amp with approx. 30% roll off.
• Low Profile 4.5 mm max. height.
• Foot Print 7.6 x 7.6mm max.
• Perfect for high density designs with limited board space.
• Operating Temperature Range of -55°C up to + 130°C.
• RoHS, HF and AEC-Q200 Standard Compliant.
• T & R Qtys: 1,000 pcs , 13'' Reel.
| 零件编号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 7.6 | 4.5 | 7.6 | 8.2uH, 20%, 40.7mOhm, 3.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 820uH, 20%, 3,350mOhm, 0.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 82uH, 20%, 325mOhm, 1.11Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 6.8uH, 20%, 39.5mOhm, 3.67Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 680uH, 20%, 2,650mOhm, 0.38Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 68uH, 20%, 274mOhm, 1.19Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 4.7uH, 20%, 23.4mOhm, 4.37Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 470uH, 20%, 1,980mOhm, 0.46Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 47uH, 20%, 219mOhm, 1.41Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 3.3uH, 20%, 17.1mOhm, 5.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 330uH, 20%, 1,360mOhm, 0.54Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 33uH, 20%, 143mOhm, 1.73Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 2.2uH, 20%, 13.5mOhm, 7.06Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 220uH, 20%, 915mOhm, 0.66Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 22uH, 20%, 96.1mOhm, 2.13Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 1.5uH, 20%, 11.8mOhm, 8.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 1uH, 20%, 8.5mOhm, 10.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 150uH, 20%, 598mOhm, 0.81Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 15uH, 20%, 67.1mOhm, 2.48Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 1,000uH, 20%, 4,500mOhm, 0.31Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 100uH, 20%, 409mOhm, 0.99Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 7.6 | 4.5 | 7.6 | 10uH, 20%, 47.5mOhm, 3.17Amp Max. SMD Shielded Drum Inductor | Data Sheet |
