SLNR6328 系列

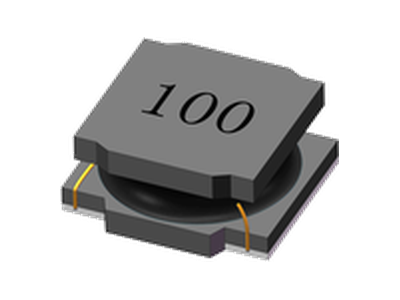

• Miniature SMD Shielded Power Inductor in a 6.30*6.30mm foot print
• Low profile : 2.80mm max. height
• Inductance Range: 1.5uH to 100.0uH , custom values are welcomed
• Ideal for DC to DC power converter application
• Operating Temperature Range: -55°C to +130°C
• T & R Qtys: 2000 pcs , 13'' Reel with plastic tape 16mm wide and 8mm pocket spacing
• RoHs & HF Compliant
• Low profile : 2.80mm max. height
• Inductance Range: 1.5uH to 100.0uH , custom values are welcomed
• Ideal for DC to DC power converter application
• Operating Temperature Range: -55°C to +130°C
• T & R Qtys: 2000 pcs , 13'' Reel with plastic tape 16mm wide and 8mm pocket spacing
• RoHs & HF Compliant
| 零件编号 | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 6.3 | 2.8 | 6.3 | 9.1uH, 20%, 60mOhm, 2.55Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 91uH, 20%, 505mOhm, 0.8Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 8.2uH, 20%, 55mOhm, 2.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 82uH, 20%, 445mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 75uH, 20%, 410mOhm, 0.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 6.2uH, 20%, 40mOhm, 3.05Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 68uH, 20%, 360mOhm, 0.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 62uH, 20%, 345mOhm, 0.95Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 5.1uH, 30%, 35mOhm, 3.55Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 51uH, 20%, 265mOhm, 1.05Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 4.7uH, 30%, 30mOhm, 3.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 47uH, 20%, 245mOhm, 1.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 43uH, 20%, 235mOhm, 1.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 3.3uH, 30%, 25mOhm, 4.15Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 39uH, 20%, 225mOhm, 1.25Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 36uH, 20%, 215mOhm, 1.25Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 33uH, 20%, 185mOhm, 1.35Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 2.7uH, 30%, 20mOhm, 4.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 2.2uH, 30%, 15mOhm, 5.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 27uH, 20%, 155mOhm, 1.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 22uH, 20%, 135mOhm, 1.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 1.5uH, 30%, 13mOhm, 6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 15uH, 20%, 95mOhm, 2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 100uH, 20%, 545mOhm, 0.75Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 6.3 | 2.8 | 6.3 | 10uH, 20%, 65mOhm, 2.35Amp Max. SMD Shielded Drum Inductor | Data Sheet |
