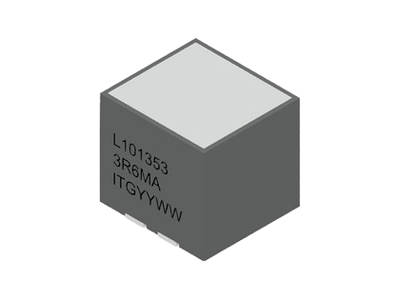

L101353A 系列
• • Ferrite based SMD inductor with lower core loss• Inductance Range: 1.0uH to 10.0uH, Custom values are welcomed• High current None couple inductor, up to 170.0 Amp with approx. 20% roll off• Low Profile 24.00 mm Max. height • Foot Print 24.50 x 26.00 mm• Perfect for high density designs with limited board space.• Operating frequency up to 5.0 MHz application• Operating Temperature Range -55°C to +130°C , RoHs & HF compliance• T & R Qtys: 20 pcs
• Tray
• Tray
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 6.8uH, 20%, 1.06mOhm, 25.0Amp Max | Data Sheet | ||
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 4.7uH, 20%, 1.06mOhm, 35.0Amp Max | Data Sheet | ||
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 3.6uH, 20%, 1.06mOhm, 48.0Amp Max | Data Sheet | ||
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 3.3uH, 20%, 1.06mOhm, 53.0Amp Max | Data Sheet | ||
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 2.5uH, 20%, 1.06mOhm, 78.0Amp Max | Data Sheet | ||
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 1.0uH, 20%, 1.06mOhm, 170.0Amp Max | Data Sheet | ||
| 24 | 26 | 24.5 | None Coupling Dual Phase shielded Inductor 10.0uH, 20%, 1.06mOhm, 14.0Amp Max | Data Sheet |
