- DIP

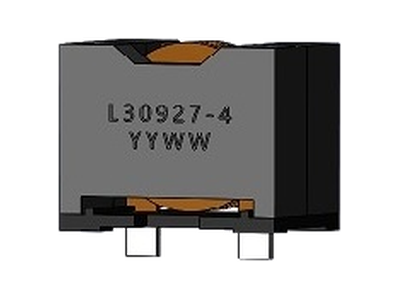

L30927 系列
• Ferrite based Power Inductor with lower core loss.
• Inductance Range:3.3uH to 33.0uH,Custom values are welcomed.
• High current output chokes, upto 99.0 Amp with approx. 20% roll off.
• Low Profile 22.74mm Max. height.
• Foot Print 27.43 x 16.97 mm Max.
• Ideal for high current power supply,Class-D.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -40°C to + 125°C , RoHs & HF compliance.
• Packing :30pcs per tray , 300pcs per carton.
• Inductance Range:3.3uH to 33.0uH,Custom values are welcomed.
• High current output chokes, upto 99.0 Amp with approx. 20% roll off.
• Low Profile 22.74mm Max. height.
• Foot Print 27.43 x 16.97 mm Max.
• Ideal for high current power supply,Class-D.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -40°C to + 125°C , RoHs & HF compliance.
• Packing :30pcs per tray , 300pcs per carton.
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 22.74 | 27.43 | 16.97 | 33uH, 10%, 2.3mOhm, 10.3Amp Max. DIP Flat Wire Inductor | Data Sheet | ||
| 22.74 | 27.43 | 16.97 | 22uH, 10%, 2.3mOhm, 16.4Amp Max. DIP Flat Wire Inductor | Data Sheet | ||
| 22.74 | 27.43 | 16.97 | 15uH, 10%, 2.3mOhm, 24.5Amp Max. DIP Flat Wire Inductor | Data Sheet | ||
| 22.74 | 27.43 | 16.97 | 10uH, 10%, 2.3mOhm, 37Amp Max. DIP Flat Wire Inductor | Data Sheet | ||
| 22.74 | 27.43 | 16.97 | 6.8uH, 10%, 2.3mOhm, 56Amp Max. DIP Flat Wire Inductor | Data Sheet | ||
| 22.74 | 27.43 | 16.97 | 4.7uH, 10%, 2.3mOhm, 72Amp Max. DIP Flat Wire Inductor | Data Sheet | ||
| 22.74 | 27.43 | 16.97 | 3.3uH, 10%, 2.3mOhm, 108Amp Max. DIP Flat Wire Inductor | Data Sheet |
