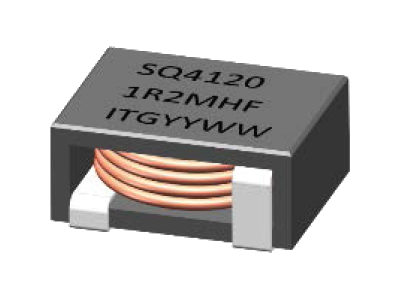

SQ4120 系列
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 0.62uH to 1.5uH, custom values are welcomed.
• High current output chokes up to 23.0 Amp with approx. 20% roll off.
• Low profile 5.00 mm Max. height.
• 8.10 x 10.30 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 950pcs, 13'' Reel.
• Inductance range: 0.62uH to 1.5uH, custom values are welcomed.
• High current output chokes up to 23.0 Amp with approx. 20% roll off.
• Low profile 5.00 mm Max. height.
• 8.10 x 10.30 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 950pcs, 13'' Reel.
| 零件编号 | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|
| 5 | 8.1 | 10.3 | 0.90uH, 0.95mOhm, 14.5A Max. Flat Wire SMD | Data Sheet | ||
| 5 | 8.1 | 10.3 | 0.82uH, 0.95mOhm, 15A Max. Flat Wire SMD | Data Sheet | ||
| 5 | 8.1 | 10.3 | 0.72uH, 0.95mOhm, 19A Max. Flat Wire SMD | Data Sheet | ||
| 5 | 8.1 | 10.3 | 0.62uH, 0.95mOhm, 23A Max. Flat Wire SMD | Data Sheet | ||
| 5 | 10.3 | 8.1 | 1.5uH, 0.95mOhm, 8.0A Max. Flat Wire SMD | Data Sheet | ||
| 5 | 8.1 | 10.3 | 1.2uH, 0.95mOhm, 10A Max. Flat Wire SMD | Data Sheet | ||
| 5 | 8.1 | 10.3 | 1.0uH, 0.95mOhm, 12.5A Max. Flat Wire SMD | Data Sheet |
