SM2007A 系列

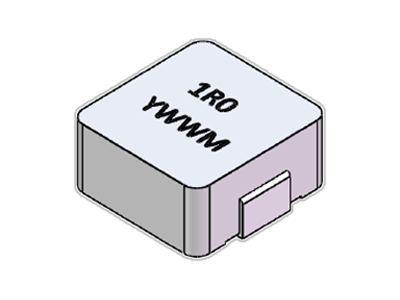

• 5.70x5.40mm foot Print, 1.80mm Max. height SMD Power Inductor for high frequency application with operating frequency of up to 5MHz.
• Inductance range from 0.56uH to 15.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Tape & Reel Quantity: 1,000 pieces per 13 inches reel. RoHS and HF compliant.
• Inductance range from 0.56uH to 15.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Tape & Reel Quantity: 1,000 pieces per 13 inches reel. RoHS and HF compliant.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.8 | 0.56 | 8.45 | 9.5 | 15 | 5.7 | 5.4 | 0.56uH, 20%, 8.45mOhm, 15Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 6.8 | 109 | 2.8 | 4 | 5.7 | 5.4 | 6.8uH, 20%, 109mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 5.6 | 82.7 | 3 | 4 | 5.7 | 5.4 | 5.6uH, 20%, 82.7mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 4.7 | 73.8 | 3.5 | 4.5 | 5.7 | 5.4 | 4.7uH, 20%, 73.8mOhm, 4.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 3.3 | 47.5 | 4.5 | 5.5 | 5.7 | 5.4 | 3.3uH, 20%, 47.5mOhm, 5.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 2.2 | 30.5 | 5 | 6.5 | 5.7 | 5.4 | 2.2uH, 20%, 30.5mOhm, 6.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 1.5 | 20.5 | 7.5 | 8.5 | 5.7 | 5.4 | 1.5uH, 20%, 20.5mOhm, 8.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 1 | 15 | 8 | 10 | 5.7 | 5.4 | 1uH, 20%, 15mOhm, 10Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 15 | 234.5 | 1.8 | 2 | 5.7 | 5.4 | 15uH, 20%, 234.5mOhm, 2Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.8 | 10 | 139.2 | 2.5 | 3.5 | 5.7 | 5.4 | 10uH, 20%, 139.2mOhm, 3.5Amp Max. SMD Molded Inductor | Data Sheet |
