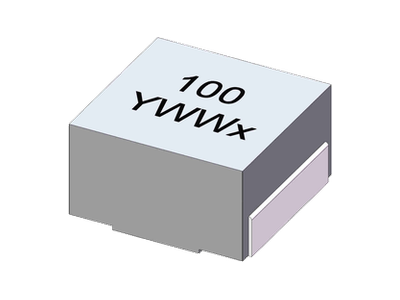

SM8750A 系列
• 24.0 x 22.3mm Foot Print , 13.0mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz
• Inductance range from 1.0uH to 100.0uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 80 pcs , 13'' Reel and Plastic tape: 44mm wide, 32mm pocket spacing
• RoHS and HF compliant
• Inductance range from 1.0uH to 100.0uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 80 pcs , 13'' Reel and Plastic tape: 44mm wide, 32mm pocket spacing
• RoHS and HF compliant
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | 82 | 32.7 | 10 | 9 | 24 | 22.3 | 82uH, 20%, 32.7mOhm, 9.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 6.8 | 2.72 | 36 | 34 | 24 | 22.3 | 6.8uH, 20%, 2.72mOhm, 34.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 68 | 26.5 | 11.5 | 11 | 24 | 22.3 | 68uH, 20%, 26.5mOhm, 11.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 4.7 | 1.9 | 44 | 38 | 24 | 22.3 | 4.7uH, 20%, 1.9mOhm, 38.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 47 | 18.4 | 13.5 | 12 | 24 | 22.3 | 47uH, 20%, 18.4mOhm, 12.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 3.3 | 1.6 | 46 | 43 | 24 | 22.3 | 3.3uH, 20%, 1.6mOhm, 43.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 33 | 13.95 | 15.5 | 13 | 24 | 22.3 | 33uH, 20%, 13.95mOhm, 13.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 2.2 | 1.1 | 58 | 45 | 24 | 22.3 | 2.2uH, 20%, 1.10mOhm, 45.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 22 | 9.6 | 18 | 17 | 24 | 22.3 | 22uH, 20%, 9.6mOhm, 17.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 1.5 | 1.05 | 59 | 55 | 24 | 22.3 | 1.5uH, 20%, 1.05mOhm, 55.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 1 | 0.82 | 68 | 65 | 24 | 22.3 | 1.0uH, 20%, 0.82mOhm, 65.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 15 | 5.35 | 25 | 24 | 24 | 22.3 | 15uH, 20%, 5.35mOhm, 24.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 100 | 36.5 | 9.5 | 9 | 24 | 22.3 | 100uH, 20%, 36.5mOhm, 9.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 13 | 10 | 3.65 | 31 | 29 | 24 | 22.3 | 10uH, 20%, 3.65mOhm, 29.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File |
