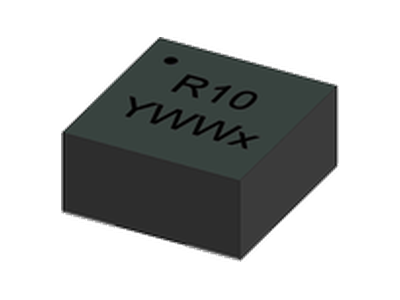

SMF2009A 系列
• 5.30 x 5.50 mm foot Print, 2.40mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz
• Inductance range from 0.10uH to 0.33uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing
• Inductance range from 0.10uH to 0.33uH. Custom values are welcomed
• High saturation current characteristics by distributed gapped metal dust core
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise)
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4 | 0.33 | 2 | 20 | 34 | 5.3 | 5.5 | 0.33uH, 20%, 2.00mOhm, 34.00A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.4 | 0.24 | 2 | 20 | 43 | 5.3 | 5.5 | 0.22uH, 20%, 2.00mOhm, 43.00A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.4 | 0.15 | 1.1 | 28 | 45 | 5.3 | 5.5 | 0.15uH, 20%, 1.10mOhm, 45.00A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.4 | 0.12 | 0.86 | 30 | 48 | 5.3 | 5.5 | 0.12uH, 20%, 0.83mOhm, 48.00A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2.4 | 0.1 | 0.83 | 30 | 56 | 5.3 | 5.5 | 0.10uH, 20%, 0.83mOhm, 56.00A Typ. SMD Molded Inductor | Data Sheet | 3D Step File |
