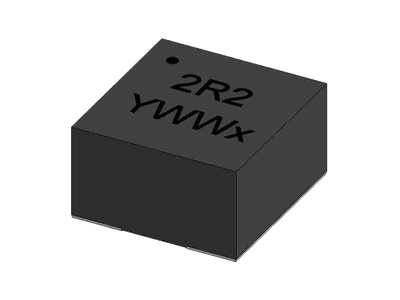

SMF2011B 系列
• 5.30 x 5.50 mm foot Print, 3.0mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 0.10uH to 4.7uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing.
• Inductance range from 0.10uH to 4.7uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 125˚C (ambient + self-temperature rise) .
• T & R Qtys: 2000 pcs , 13'' Reel and Plastic tape: 12mm wide, 8mm pocket spacing.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 0.68 | 3.8 | 19.5 | 21.5 | 5.3 | 5.5 | 0.68uH, 20%, 3.8mOhm, 21.5A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.56 | 3 | 22 | 24 | 5.3 | 5.5 | 0.56uH, 20%, 3.0mOhm, 24.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.47 | 2.5 | 24 | 26 | 5.3 | 5.5 | 0.47uH, 20%, 2.5mOhm, 26.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.33 | 1.8 | 28.5 | 32 | 5.3 | 5.5 | 0.33uH, 20%, 1.8mOhm, 32.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.22 | 1.27 | 33 | 38 | 5.3 | 5.5 | 0.22uH, 20%, 1.27mOhm, 38.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.15 | 0.74 | 38 | 45 | 5.3 | 5.5 | 0.15uH, 20%, 0.74mOhm, 45.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 0.1 | 0.74 | 38 | 53 | 5.3 | 5.5 | 0.10uH, 20%, 0.74mOhm, 53.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 4.7 | 16.5 | 8.5 | 7.2 | 5.5 | 5.3 | 4.7uH, 20%, 16.5mOhm, 7.2A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 3.3 | 15 | 10 | 9.2 | 5.3 | 5.5 | 3.3uH, 20%, 15.0mOhm, 9.2A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 2.2 | 9.5 | 12 | 11 | 5.3 | 5.5 | 2.2uH, 20%, 9.5mOhm, 11.0A Max. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 3 | 1.5 | 7.2 | 14 | 15 | 5.3 | 5.5 | 1.5uH, 20%, 7.2mOhm, 15.0A Max. SMD Molded Inductor | Data Sheet | |||
| 3 | 1 | 5 | 17 | 18 | 5.3 | 5.5 | 1.0uH, 20%, 5.0mOhm, 18.0A Max. SMD Molded Inductor | Data Sheet |
