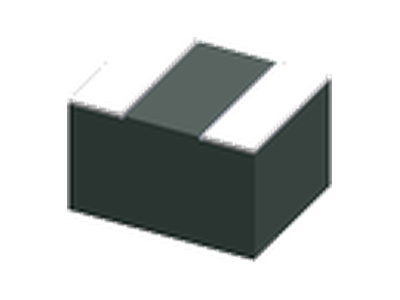

SMF322520A 系列
• 1210 Foot print (3.2 x 2.5 mm).
• Inductance range from 0.22 uH to 4.70 uH.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, PAD, Notebook, smart phone & High Density DC to DC converter Board.
• Lower DC resistance for higher current application.
• Working Frequency up to 5MHz.
• T & R Qtys: 2000 pcs , 7'' Reel and Plastic tape: 8mm wide, 4mm pocket spacing.
• Operating Temperature Range: -55°C to + 125°C (ambient + self-temperature rise).
• RoHS and HF compliant.
• Inductance range from 0.22 uH to 4.70 uH.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, PAD, Notebook, smart phone & High Density DC to DC converter Board.
• Lower DC resistance for higher current application.
• Working Frequency up to 5MHz.
• T & R Qtys: 2000 pcs , 7'' Reel and Plastic tape: 8mm wide, 4mm pocket spacing.
• Operating Temperature Range: -55°C to + 125°C (ambient + self-temperature rise).
• RoHS and HF compliant.
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 0.68 | 12 | 7 | 8 | 3.2 | 2.5 | 0.68uH, 20%, 12.0mOhm, 8.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 0.47 | 8.7 | 8 | 9 | 3.2 | 2.5 | 0.47uH, 20%, 8.70mOhm, 9.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 0.33 | 7.4 | 8.5 | 11 | 3.2 | 2.5 | 0.33uH, 20%, 7.40mOhm, 11.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 0.22 | 4.55 | 11 | 17 | 3.2 | 2.5 | 0.22uH, 20%, 4.55mOhm, 17.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 4.7 | 78 | 2.8 | 3 | 3.2 | 2.5 | 4.7uH, 20%, 78.0mOhm, 3.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 3.3 | 52 | 3.5 | 4 | 3.2 | 2.5 | 3.3uH, 20%, 52.0mOhm, 4.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 2.2 | 36 | 4.3 | 4.8 | 3.2 | 2.5 | 2.2uH, 20%, 36.0mOhm, 4.8A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 1.5 | 23 | 5 | 5.5 | 3.2 | 2.5 | 1.5uH, 20%, 23.0mOhm, 5.5A Typ. SMD Molded Inductor | Data Sheet | 3D Step File | ||
| 2 | 1 | 14.5 | 6.5 | 7 | 3.2 | 2.5 | 1.0uH, 20%, 14.5mOhm, 7.0A Typ. SMD Molded Inductor | Data Sheet | 3D Step File |
