- DIP

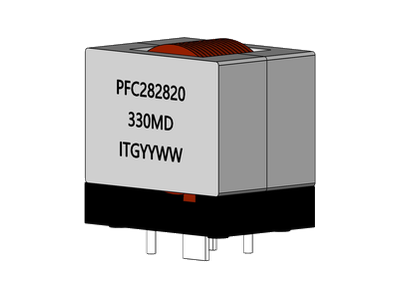

PFC282820D 系列
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 33.0uH to 330.0uH, custom values are welcomed
• High current output chokes, up to 45.7 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 27.5 x 20.0mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 33.0uH to 330.0uH, custom values are welcomed
• High current output chokes, up to 45.7 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 27.5 x 20.0mm max., 28.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|
| 28 | 330 | 51.6 | 27.5 | 20 | Power Factor Correction Chokes 330.0uH, 14.5Amp, 51.6mOhm | Data Sheet | ||
| 28 | 220 | 31 | 27.5 | 20 | Power Factor Correction Chokes 220.0uH, 17.8Amp, 31.0mOhm | Data Sheet | ||
| 28 | 165 | 22.3 | 27.5 | 20 | Power Factor Correction Chokes 165.0uH, 20.6Amp, 22.3mOhm | Data Sheet | ||
| 28 | 125 | 16.7 | 27.5 | 20 | Power Factor Correction Chokes 125.0uH, 23.7Amp, 16.7mOhm | Data Sheet | ||
| 28 | 90 | 12.5 | 27.5 | 20 | Power Factor Correction Chokes 90.0uH, 27.8Amp, 12.5mOhm | Data Sheet | ||
| 28 | 50 | 6.8 | 27.5 | 20 | Power Factor Correction Chokes 50.0uH, 37.7Amp, 6.8mOhm | Data Sheet | ||
| 28 | 33 | 4.5 | 27.5 | 20 | Power Factor Correction Chokes 33.0uH, 45.7Amp, 4.5mOhm | Data Sheet |
