- DIP

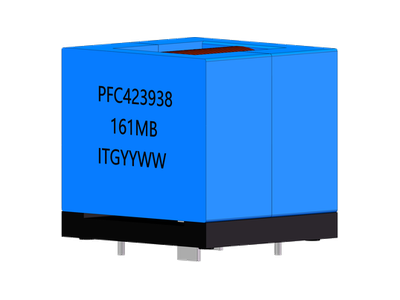

PFC423938B 系列
• Alloy powder based DIP Inductor with lower core loss
• No thermal aging concerns
• Inductance Range: 160.0 uH, custom values are welcomed
• High current output chokes, up to 45.0 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 41.5 x 39.0mm max., 38.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
• No thermal aging concerns
• Inductance Range: 160.0 uH, custom values are welcomed
• High current output chokes, up to 45.0 Amp with approx. 50% roll off
• Designed and developed for Power Factor Correction applications
• Foot Print: 41.5 x 39.0mm max., 38.0mm max. Height
• Surge Voltage: 400VDC
• Operating Temperature Range: -55°C to + 150°C
• RoHs & HF compliant
• MTBF = 2,083,333,333 hours, FIT = 0.48 ( per billions hour ) per Telcordia SR-332
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | ||
|---|---|---|---|---|---|---|---|---|---|
| 38 | 160 | 7.9 | 41.5 | 39 | Power Factor Correction Chokes 160.0uH, 45.0Amp, 7.9mOhm | Data Sheet | 3D Step File |
