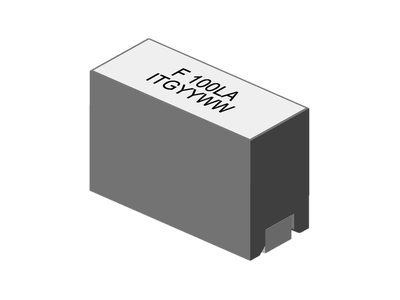

AFA47325A 系列
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 93.0 Amp with approx. 20% roll off
• Low Profile 8.00 mm Max. height
• Foot Print 12.00 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance
• T & R Qtys: 500 pcs, 13'' Reel
• Inductance Range: 70.0nH to 120.0nH, Custom values are welcomed
• High current output chokes, up to 93.0 Amp with approx. 20% roll off
• Low Profile 8.00 mm Max. height
• Foot Print 12.00 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance
• T & R Qtys: 500 pcs, 13'' Reel
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.12 | 0.105 | 73 | 54 | 46 | 12 | 5 | Coupling Inductor for TLVR, 120.0nH, 54.0A, 0.105mΩ DCR | Data Sheet | ||
| 8 | 0.1 | 0.105 | 73 | 65 | 56 | 12 | 5 | Coupling Inductor for TLVR, 100.0nH, 65.0A, 0.105mΩ DCR | Data Sheet | ||
| 8 | 0.08 | 0.105 | 73 | 81 | 70 | 12 | 5 | Coupling Inductor for TLVR, 80.0nH, 81.0A, 0.105mΩ DCR | Data Sheet | ||
| 8 | 0.07 | 0.105 | 73 | 93 | 80 | 12 | 5 | Coupling Inductor for TLVR ,70.0nH, 93.0A, 0.105mΩ DCR | Data Sheet |
