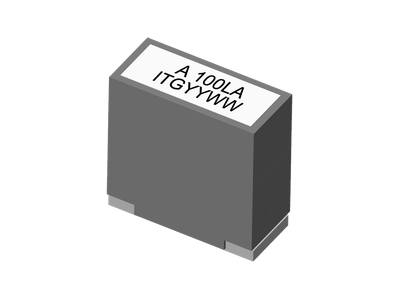

AHA40475A 系列
• Ferrite based TLVR inductor with lower core loss
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 135.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 10.00 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 135.0 Amp with approx. 20% roll off
• Low Profile 12.00 mm Max. height
• Foot Print 10.00 x 5.00 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 300 pcs , 13'' Reel
| 零件编号 | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Isat6 (A) @100℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | 下载 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.15 | 0.16 | 64 | 64 | 55 | 10 | 5 | 150nH, 15%, 0.16mOhm, 64.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.12 | 0.16 | 64 | 81 | 69 | 10 | 5 | 120nH, 15%, 0.16mOhm, 81.0A Max. SMD Power Bead | Data Sheet | ||
| 12 | 0.1 | 0.16 | 64 | 98 | 82 | 10 | 5 | Coupling Inductor for TLVR, 100.0nH, 98.0A, 0.16mΩ DCR | Data Sheet | ||
| 12 | 0.09 | 0.16 | 64 | 108 | 90 | 10 | 5 | Coupling Inductor for TLVR, 90.0nH, 108.0A, 0.16mΩ DCR | Data Sheet | ||
| 12 | 0.08 | 0.16 | 64 | 120 | 100 | 10 | 5 | Coupling Inductor for TLVR, 80.0nH, 120.0A, 0.16mΩ DCR | Data Sheet | ||
| 12 | 0.07 | 0.16 | 64 | 135 | 116 | 10 | 5 | Coupling Inductor for TLVR, 70.0nH, 135.0A, 0.16mΩ DCR | Data Sheet |
